Genome Technology and Engineering
Chapter 5
1. What is a genome? How is the genome of prokaryotes different from eukaryotes?
Ans: A genome is the complete set of genetic material of an organism, including its DNA. It holds the instructions for building and maintaining an organism's traits and functions. Think of it as a comprehensive instruction manual for life!
There are some key differences between the genomes of prokaryotes (simple organisms like bacteria) and eukaryotes (more complex organisms like animals and plants):
Organization:
*Prokaryotes: Single circular chromosome, no nucleus. Often have additional smaller circular DNA molecules called plasmids.
*Eukaryotes: Multiple linear chromosomes housed within a nucleus.
Complexity:
*Prokaryotes: Generally smaller genomes, less non-coding DNA, fewer genes.
*Eukaryotes: Larger genomes, often with significant amounts of non-coding DNA, more genes for diverse functions.
Gene structure:
*Prokaryotes: Genes typically lack introns (non-coding DNA sequences within genes that need to be spliced out).
*Eukaryotes: Genes often contain introns that need to be spliced out during gene expression.
Other differences:
*Prokaryotes lack some structures commonly found in eukaryotes, like mitochondria and a Golgi apparatus, which may also impact genome organization and function.
*Eukaryotic genomes can be more dynamic and undergo rearrangements like transposable elements (jumping genes) that are less common in prokaryotes.
These are just some of the main differences between prokaryotic and eukaryotic genomes. Understanding these differences helps us appreciate the diversity and complexity of life on Earth and how organisms manage their genetic information.
2. What are the types of genome mapping? Explain each with a comparative approach.
Ans: Types of Genome Mapping: A Comparative Look
There are two main types of genome mapping: physical mapping and genetic mapping. Each helps us understand the location and organization of genes within an organism's genome, but they do so in different ways.
1. Physical Mapping:
*Focus: Identifies the physical location of genes on chromosomes based on their distance from each other in base pairs.
*Method: Uses techniques like restriction enzyme digestion, fluorescent in situ hybridization (FISH), and radiation hybrid mapping to break down the genome into fragments and order them relative to each other.
*Advantage: Provides a highly accurate and detailed picture of the physical layout of the genome, including non-coding regions.
*Limitation: Can be time-consuming and expensive, especially for large genomes.
2. Genetic Mapping:
*Focus: Determines the relative order of genes on chromosomes based on their inheritance patterns.
*Method: Analyzes how traits are linked together and recombined during crossing over in meiosis.
*Advantage: Relatively quick and easy to perform, especially for large families or populations.
*Limitation: Provides less precise information than physical mapping, only revealing the relative order of genes, not their exact physical distance.
Comparative Approach:

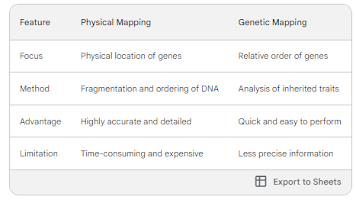

Here's a table summarizing the key differences between physical and genetic mapping:
3. Suppose a DNA is extracted, purified and digested with enzyme BamH1. What type of mapping can be achieved? Mention the application of this type of mapping.
Ans: Digesting DNA extracted from an organism with the restriction enzyme BamH1 would allow you to perform physical mapping of the genome. Here's a breakdown:
Physical Mapping:
*Identifies the physical location of genes on chromosomes based on their distance from each other in base pairs.
*Uses techniques like restriction enzyme digestion to break down the genome into fragments of predictable sizes based on the enzyme's recognition sequence (5'-GGATCC-3' for BamH1).
*These fragments can then be ordered and assembled into a physical map of the chromosome using various techniques like gel electrophoresis, Southern blotting, and DNA sequencing.
Applications of Physical Mapping:
*Genome assembly: Physical maps provide a crucial framework for ordering and assembling the vast amount of data generated by DNA sequencing projects.
*Gene localization: Identifying the physical location of specific genes on chromosomes helps researchers understand their function and potential involvement in diseases.
*Comparative genomics: Comparing the physical maps of different species can reveal conserved gene clusters and shed light on evolutionary relationships.
*Medical applications: Physical maps can be used to identify chromosomal rearrangements associated with genetic disorders and develop diagnostic tools.
Here's an analogy to visualize the process:
Imagine a long string of beads representing the DNA molecule. BamH1 is like a pair of scissors that can only cut the string at specific bead combinations (representing the GGATCC sequence). By analyzing the sizes of the resulting fragments, you can infer the order and spacing of the bead combinations (genes) along the original string (chromosome).
Limitations of Physical Mapping:
*Can be time-consuming and expensive, especially for large genomes.
*May not provide information about the functional organization of genes within the genome.
Despite these limitations, physical mapping remains a valuable tool for understanding the structure and organization of genomes.
4. What is STS and its role in genome mapping?
Ans: STS: Landmarks for Exploring the Genome
Sequence-tagged sites (STS) are short, unique DNA sequences used as landmarks for constructing physical maps of genomes. Imagine them as signposts along a long, winding road (the chromosome) guiding you to specific locations without needing to navigate the entire stretch at once. Here's a deeper dive into STS and its role in genome mapping:
What is an STS?
*An STS is a short stretch of DNA, typically 200-500 base pairs long, with a unique sequence that distinguishes it from other regions in the genome.
*Its unique sequence allows it to be easily amplified and detected from a complex DNA mixture using a technique called polymerase chain reaction (PCR).
Role in Genome Mapping:
*STS serve as reference points for constructing physical maps of chromosomes. They are like mile markers on a highway, providing fixed positions that can be used to order and orient other DNA fragments.
*By analyzing the presence or absence of specific STSs in different DNA fragments, researchers can determine their relative positions and assemble them into a physical map of the chromosome.
*This mapping helps locate genes of interest, identify chromosomal rearrangements associated with diseases, and understand the overall organization of the genome.
Benefits of using STS:
*Specificity: The unique sequence of an STS prevents accidental amplification of other regions, ensuring accurate mapping.
*Ease of detection: PCR makes it simple and fast to identify STS in small amounts of DNA samples.
*Versatility: STSs can be applied to map any organism's genome, making them a widely used tool.
Limitations of STS:
*Density: Compared to other mapping techniques like SNP arrays, STS maps have lower resolution, meaning fewer landmarks per chromosome.
*Labor-intensive: Identifying and characterizing new STSs can be time-consuming and expensive.
*Evolving techniques: Newer technologies like next-generation sequencing are largely replacing STS-based mapping for large-scale projects.
Despite these limitations, STS played a crucial role in the early days of genome mapping and laid the foundation for our current understanding of genome organization. They continue to be valuable tools for research in specific areas like genetic disease studies and comparative genomics.
5. Give a brief insight about the development of DNA sequencing technology and genomic workflow.
Ans: Unveiling the Book of Life: A Journey Through DNA Sequencing and Genomic Workflow
DNA sequencing technology has revolutionized our understanding of life, offering a window into the blueprint of every living organism. From humble beginnings to cutting-edge techniques, here's a glimpse into its remarkable journey and the complex genomic workflow it drives:
Early Days:
*Sanger sequencing (1977): The first practical method, using radioactive nucleotides and chain termination, paved the way for reading short DNA sequences.
*Maxam-Gilbert sequencing (1977): Another pioneering technique, utilizing chemical modifications and gel electrophoresis, provided an alternative approach.
The Automation Revolution:
*Automated Sanger sequencing (1980s): Machines streamlined the process, making it faster and more efficient.
*Fluorescence-based sequencing (1990s): Dyes attached to nucleotides allowed real-time detection, significantly increasing sequencing speed.
Next-Generation Sequencing (NGS):
*High-throughput sequencing (2000s): Millions of DNA fragments are sequenced simultaneously, dramatically reducing cost and increasing data output.
*Short-read NGS platforms (Illumina, Ion Torrent): Generate millions of short reads (50-300 base pairs) ideal for population studies and variant detection.
*Long-read NGS platforms (PacBio, Oxford Nanopore): Produce reads tens of thousands of base pairs long, crucial for assembling complex genomes and studying structural variations.
Genomic Workflow:
*Sample preparation: Isolating high-quality DNA from various sources like cells or tissues.
*Library preparation: Fragmenting and modifying DNA samples for compatibility with chosen sequencing platform.
*Sequencing: Running the chosen platform to generate millions of DNA reads.
*Data analysis: Assembling short reads into longer contigs, aligning them to a reference genome, and identifying genetic variations.
*Interpretation: Deciphering the biological meaning of the obtained results, linking genetic variations to traits, diseases, or evolutionary relationships.
Challenges and Future Directions:
*Data storage and analysis: Managing massive datasets and developing sophisticated algorithms for accurate interpretation remain ongoing challenges.
*Cost and accessibility: Making NGS technology more affordable and accessible to broader research and clinical applications.
*Ethical considerations: Navigating the implications of genetic information disclosure and ensuring responsible use of this powerful technology.
DNA sequencing technology continues to evolve rapidly, promising even deeper insights into the mysteries of life. As the genomic workflow becomes more efficient and comprehensive, we can expect a future where personalized medicine, gene editing, and understanding of our biological world reach new heights.
6. Discuss how next generation DNA sequencing technology has overcome the drawbacks of the first-generation DNA sequencing technology. Elaborate the methodology.
Ans: Next-Generation Sequencing: A Leap Forward from First-Generation Technology
Next-generation DNA sequencing (NGS) has revolutionized the field of genomics by overcoming several major limitations of the first-generation technologies like Sanger sequencing. Here's a breakdown of how NGS tackles the drawbacks and its core methodology:
Drawbacks of First-Generation Technology:
- Slow: Sequencing one human genome could take months or even years.
- Expensive: The labor-intensive process made it accessible only to a limited number of research labs.
- Low throughput: Only a few hundred bases could be sequenced in a single run.
- Limited read length: Longer fragments were difficult to sequence, hindering assembly of complex genomes.
How NGS Overcomes these Drawbacks:
- Massively parallel sequencing: Millions of DNA molecules are sequenced simultaneously, dramatically increasing throughput and speed.
- Reduced cost: Automation and miniaturization lowered the per-base sequencing cost, making it more accessible for broader research projects.
- Short-read NGS platforms: Platforms like Illumina and Ion Torrent generate millions of short reads (50-300 base pairs), ideal for population studies and variant detection.
- Long-read NGS platforms: Platforms like PacBio and Oxford Nanopore produce reads tens of thousands of base pairs long, crucial for assembling complex genomes and studying structural variations.
NGS Methodology:
- Sample preparation: High-quality DNA is isolated from the chosen sample (cells, tissues).
- Library preparation: DNA is fragmented and tagged with adapters compatible with the sequencing platform.
- Cluster generation: The DNA fragments are attached to a flow cell or nanopores, creating millions of sequencing clusters.
- Sequencing: Each cluster undergoes repeated cycles of nucleotide incorporation and detection, generating millions of short reads.
- Data analysis: Reads are assembled into longer contigs, aligned to a reference genome, and analyzed for variations, gene expression, and other features.
Benefits of NGS:
- Faster and cheaper: A human genome can now be sequenced in days or even hours.
- Higher throughput: Millions of DNA fragments can be sequenced simultaneously.
- Improved read length: Platforms offering longer reads facilitate assembly of complex genomes.
- Wider applications: NGS opens doors for personalized medicine, genetic disease studies, population genetics, and evolutionary research.
Challenges and Future Directions:
- Data storage and analysis: Handling massive datasets and developing sophisticated algorithms for accurate interpretation remain ongoing challenges.
- Error correction: Short reads can contain errors, requiring sophisticated analysis pipelines for accurate results.
- Cost and accessibility: While more affordable, NGS still requires considerable resources, creating accessibility disparities.
Despite these challenges, NGS technology has transformed the field of genomics, providing a powerful tool for understanding the intricacies of life. As its methodology continues to improve and become more accessible, we can expect even greater breakthroughs in healthcare, research, and our understanding of ourselves and the world around us.
7. What is a unit of physical mapping? Discuss in detail.
Ans: Units of Physical Mapping: A Spectrum of Resolution
When it comes to physical mapping, there isn't one single universal unit. The appropriate unit depends on the level of detail and resolution you're targeting, just like you wouldn't use centimeters to measure the distance between stars. Here's a breakdown of the units used across different mapping scales:
High-Resolution Mapping:
*Nucleotides (nt): This is the most precise unit, used for detailed maps like complete genome sequences. Each nucleotide (A, C, T, or G) in the DNA chain signifies a position on the map. This level of detail allows pinpoint localization of genes, mutations, and other specific points of interest.
*Base pairs (bp): Two nucleotides paired together (e.g., AT or CG) form a base pair. It's a convenient unit for measuring shorter stretches of DNA, often in the range of thousands to millions.
Low-Resolution Mapping:
*Kilobases (kb): One kilobase equals 1,000 base pairs. This unit is used for mapping larger, less detailed regions, like the order and spacing of genes within a chromosome segment.
*Megabases (Mb): A million base pairs, or 1,000 kilobases, form a megabase. This unit helps visualize vast stretches of DNA, particularly in large genomes like those of plants and animals.
Beyond DNA Sequence:
*Genetic markers: Sometimes, physical maps rely on landmarks other than DNA sequence, like restriction enzyme cut sites or specific genetic variations. These markers have their own units, like centimorgans (cM) in linkage maps, which reflect recombination frequency rather than physical distance.
Additional Considerations:
*Resolution varies between techniques: Different mapping techniques offer varying levels of detail. Fluorescence in situ hybridization (FISH) can achieve high resolution on individual chromosomes, while restriction fragment length polymorphism (RFLP) maps offer lower resolution across the entire genome.
*Context matters: The scale of the map also needs to be considered. Zooming in on a specific gene requires using smaller units like nucleotides, while a full genome overview might utilize megabases.
In conclusion, the unit of physical mapping is a dynamic concept, adapting to the desired level of detail and the specific technique used. Understanding the spectrum of units and their context is crucial for interpreting and effectively utilizing physical maps in various biological fields.
8. Discuss the methodology and applications of third generation sequencing technology.
Ans: Third-Generation Sequencing: Diving Deep into DNA
Third-generation sequencing (TGS) is revolutionizing genetic research by overcoming limitations of earlier technologies. Let's delve into its methodologies and applications!
Methodology:
TGS technologies primarily fall into two categories:
*Single-molecule real-time (SMRT) sequencing: pioneered by PacBio, this method uses fluorescently labeled nucleotides and a zero-mode waveguide to observe individual DNA polymerase molecules as they synthesize new DNA copies. The emitted light signals identify each incorporated base in real-time, generating long reads (up to 100kb).
*Nanopore sequencing: Oxford Nanopore's MinION sequencer uses biological nanopores embedded in a membrane. As single DNA molecules thread through the pore, changes in ionic current reveal the sequence. While error rates are higher than SMRT, nanopore sequencing boasts ultra-long reads (over 1 Mb) and portability.
Applications:
TGS's long-read capabilities unlock a vast array of applications:
*De novo genome assembly: TGS helps stitch together short reads from second-generation sequencing into complete, high-quality genomes, especially for complex organisms with repetitive regions.
*Transcriptome analysis: Full-length transcripts, including splice variants and alternative isoforms, can be mapped without fragmentation, providing deeper insights into gene expression and regulation.
*Epigenetic studies: DNA methylation patterns, crucial for gene regulation, can be directly detected from native DNA without modification, uncovering epigenetic landscapes with unprecedented detail.
*Structural variation analysis: Large genomic rearrangements, deletions, and inversions, often missed by short-read sequencing, can be readily identified with TGS, improving our understanding of human diseases and genetic diversity.
*Metagenomics and microbiome analysis: Complex microbial communities can be investigated with high accuracy, shedding light on their composition, function, and role in health and disease.
Challenges and Future:
Despite its potential, TGS still faces challenges, including higher error rates compared to second-generation technologies and higher costs. However, continuous advancements in algorithms and data analysis tools are rapidly improving accuracy and affordability.
The future of TGS is bright, promising to:
*Personalize medicine: By enabling deeper understanding of individual genetic variations and disease mechanisms, TGS can pave the way for personalized diagnostics and tailored therapies.
*Conserve biodiversity: Deciphering complex genomes of endangered species and characterizing microbial diversity in ecosystems can inform conservation efforts.
*Unravel human evolution: Long reads offer a powerful tool for studying ancient DNA and reconstructing the evolutionary history of our species.
TGS is not just a technological leap, but a paradigm shift in how we explore the intricate world of genomes. As it continues to evolve, its applications will push the boundaries of our understanding of life and pave the way for a healthier and more sustainable future.
9. What are the different variations of Next Generation Sequencing? Explain in brief.
Ans: Next-generation sequencing (NGS) offers a diverse toolbox, not just one method. Here are some key variations, each with its strengths and weaknesses:
By Read Length:
*Short-read NGS: Generates millions of reads, each around 100-300 base pairs long. Affordable, fast, and great for targeted sequencing or studying small variations. However, assembling longer sequences can be challenging.
*Long-read NGS: Produces fewer reads, but each can be thousands to millions of base pairs long. Ideal for de novo genome assembly, studying structural variations, and analyzing full-length transcripts. However, it's often more expensive and has higher error rates than short-read NGS.
By Target:
*Whole-genome sequencing (WGS): Analyzes the entire genome, providing a comprehensive overview of all genetic information. Useful for research and rare disease diagnosis, but costly and computationally demanding.
*Whole-exome sequencing (WES): Focuses on the coding regions (exons) of genes, where most disease-causing mutations occur. More affordable than WGS and suitable for identifying genetic basis of many disorders.
*Targeted sequencing: Focuses on specific genes or regions of interest using hybridization capture or PCR amplification. Efficient and cost-effective for studying known disease mutations or targeted research questions.
Other Variations:
*RNA sequencing (RNA-seq): Measures the expression levels of genes, providing insights into gene activity and regulation.
*Single-cell sequencing: Analyzes the genomes or transcriptomes of individual cells, revealing hidden heterogeneity within tissues and cell populations.
*Metagenomics sequencing: Characterizes the genetic makeup of microbial communities in environmental samples like soil or gut microbiome.
Each NGS variation has its place in the genetic research and clinical diagnostic landscape. Choosing the right one depends on the specific research question, available resources, and desired level of detail. By understanding these variations and their advantages, researchers can unlock the full potential of NGS to advance our understanding of biology and health.
10. What are the applications of advanced sequencing technologies? Elaborate.
Ans: Advanced sequencing technologies, encompassing both third-generation (TGS) and advanced second-generation (NGS) techniques, are revolutionizing various fields with their remarkable capabilities. Here's a glimpse into their diverse applications:
Precision Medicine:
*Personalized diagnostics: TGS unlocks the power of de novo genome assembly, enabling accurate diagnosis of complex genetic disorders previously beyond reach.
*Targeted therapies: By identifying causative mutations and gene expression patterns, advanced sequencing guides the development of personalized treatment plans.
*Pharmacogenomics: Predicting individual responses to drugs based on genetic variations allows for safer and more effective medication regimes.
Cancer Research:
*Tumor characterization: Comprehensive genomic profiling of tumors reveals driver mutations, genetic heterogeneity, and treatment resistance mechanisms.
*Early detection: Liquid biopsies, analyzing circulating tumor DNA in blood, enable early detection of cancers through minimal-invasive methods.
*Personalized immunotherapy: Identifying immune checkpoint blockade targets in individual tumors paves the way for personalized cancer immunotherapy.
Agriculture and Biotechnology:
*Crop improvement: TGS facilitates high-resolution mapping of plant genomes, aiding in breeding programs for disease resistance, yield enhancement, and stress tolerance.
*Microbial engineering: Sequencing allows for precise manipulation of microbial genomes, opening doors for biofuel production, environmental remediation, and industrial applications.
*Gene editing: Accurate characterization of off-target effects and optimization of CRISPR-Cas9 editing strategies rely heavily on advanced sequencing data.
Conservation Biology and Ecology:
*Population genetics: Studying genetic diversity and population structure of endangered species informs conservation efforts and management strategies.
*Metagenomics: Characterizing microbial communities in ecosystems like coral reefs or the human gut sheds light on their crucial roles and potential disruptions.
*Ancient DNA analysis: TGS enables sequencing of degraded DNA from fossils, unlocking secrets of extinct animals and reconstructing evolutionary history.
Beyond these, advanced sequencing finds applications in forensics, anthropology, and archaeology, revealing hidden truths and shaping our understanding of the past.
However, challenges like high costs, data analysis complexity, and ethical considerations remain. Research and development efforts are focused on addressing these challenges and making advanced sequencing even more accessible and impactful across diverse fields.
11. Discuss the applications of metagenomics.
Ans: Metagenomics: Diving into the Unseen Microworld
Metagenomics, the study of genetic material directly from environmental samples without isolating individual organisms, has become a powerful tool across various fields. Here's a glimpse into its exciting applications:
Healthcare:
*Microbiome analysis: Unraveling the composition and function of gut, skin, and other body's microbiomes leads to insights into health and disease. For example, gut dysbiosis can be linked to inflammatory bowel disease, obesity, and even mental health conditions.
*Pathogen identification: Rapidly diagnosing new or unknown pathogens in outbreak situations, including antibiotic-resistant strains, allows for quicker public health interventions.
*Personalized medicine: Tailoring treatments based on individual's microbiome profiles holds promise for more effective therapies and preventive measures.
Environmental and Agriculture:
*Bioremediation: Identifying microbes capable of degrading pollutants like oil spills or industrial waste can guide bioremediation strategies for environmental clean-up.
*Soil health analysis: Understanding the microbial communities in soil helps optimize agricultural practices, improve crop yields, and enhance soil fertility.
*Biodiversity assessment: Metagenomics provides a more comprehensive view of microbial diversity in ecosystems, aiding in biodiversity conservation efforts and monitoring environmental changes.
Biotechnology and Industry:
*Enzyme discovery: Novel enzymes with unique properties for industrial applications, like biofuel production or drug synthesis, can be identified from environmental metagenomes.
*Bioengineering: Understanding the metabolic pathways and interactions of microbial communities opens doors for engineering microbes for specific functions like biodegradation or biomanufacturing.
*Food safety and production: Monitoring food-borne pathogens and spoilage microbes in food and production environments helps ensure food safety and quality.
Beyond these, metagenomics has applications in forensics, marine biology, and even astrobiology, as scientists search for potential microbial life on other planets.
However, challenges remain. Accurately analyzing diverse and complex metagenomic data, handling biases introduced during sampling and sequencing, and translating ecological insights into practical applications are areas of ongoing research and development.
Despite these challenges, the future of metagenomics is bright. As technology advances and our understanding of the vast unseen microbial world deepens, its applications will continue to revolutionize healthcare, environmental management, and various industries, shaping a healthier and more sustainable future for our planet.
12. What are the goals of genome engineering? Explain each in detail.
Ans: The Ambitious Goals of Genome Engineering: A Multifaceted Pursuit
Genome engineering, the manipulation of an organism's genetic makeup, offers a powerful toolkit with diverse goals spanning medicine, agriculture, and beyond. Let's delve into the key objectives this technology strives to achieve:
1. Cure Genetic Diseases:
*Correcting harmful mutations: Replacing or repairing disease-causing mutations in genes could potentially cure genetic disorders like cystic fibrosis, sickle cell anemia, and Tay-Sachs disease.
*Gene therapy: Introducing functional copies of defective genes can restore proper protein production and alleviate symptoms of genetic diseases. This holds promise for treating conditions like hemophilia and Duchenne muscular dystrophy.
2. Enhance Human Traits:
*Disease resistance: Introducing or modifying genes to confer resistance to infectious diseases like malaria or HIV could have a significant impact on global health.
*Boosting physical and cognitive abilities: While ethically controversial, some aim to use genome engineering to enhance strength, endurance, or even cognitive functions.
3. Improve Agriculture:
*Increased crop yields: Engineering crops to be more resistant to pests, diseases, and harsh environmental conditions could significantly improve agricultural productivity and food security.
*Enhanced nutritional value: Modifying crops to contain higher levels of vitamins, minerals, or other essential nutrients could address malnutrition in certain regions.
4. Conservation and Biodiversity:
*Preventing species extinction: Genome editing could be used to protect endangered species by repairing harmful mutations or introducing adaptive traits.
*Restoring ecosystems: Introducing specific genes into organisms could potentially help remediate damaged ecosystems or combat invasive species.
5. Basic Research and Biotechnology:
*Understanding gene function: Editing genes and observing the resulting phenotypic changes helps scientists understand how genes function and influence biological processes.
*Developing new biomaterials and products: Engineering microbes or other organisms to produce valuable compounds like medicines, biofuels, or industrial enzymes can benefit various sectors.
Challenges and Considerations:
While the potential of genome engineering is vast, ethical concerns, unintended consequences, and technical limitations remain significant challenges. Unforeseen risks, equitable access to these technologies, and potential misuse are important considerations as the field progresses.
13. One of the applications of genome engineering is to achieve high level recombinant protein production. How can we achieve this? Explain in detail.
Ans: Genome engineering offers exciting possibilities for boosting recombinant protein production, a crucial step in developing therapeutic proteins, enzymes, and industrial applications. Here are some strategies:
1. Optimizing Expression Levels:
*Promoter engineering: Replacing the native promoter with stronger synthetic promoters can increase mRNA transcription and protein translation.
*Codon optimization: Adapting the gene sequence to the host organism's preferred codon usage improves translation efficiency.
*Fusion tags: Adding specific tags like His-tag or FLAG-tag simplifies protein purification and detection.
2. Enhancing Host Cell Production Capacity:
*Multiple copies of the gene: Introducing multiple copies of the gene on plasmids or integrating them into the host chromosome can amplify protein production.
*Gene dosage control: Utilizing inducible promoters or copy number control systems allows fine-tuning of protein expression levels.
*Metabolic engineering: Optimizing metabolic pathways for amino acid and precursor supply can support higher protein synthesis.
3. Minimizing Protein Degradation:
*Protease-deficient strains: Using host strains with reduced protease activity minimizes protein degradation post-translation.
*Chaperone co-expression: Introducing chaperone proteins aids in proper protein folding and prevents aggregation, improving stability.
*Fusion with stabilizing domains: Adding protein domains known for stability can enhance the resilience of the recombinant protein.
4. Optimizing Culture Conditions:
*Growth media and temperature: Fine-tuning media composition and culture temperature can optimize cell growth and protein production.
*Fed-batch fermentation: Controlled addition of nutrients during fermentation extends cell viability and promotes sustained protein production.
*Bioreactor technology: Employing optimized bioreactors provides precise control of culture conditions for maximizing yields.
5. Novel Genome Engineering Techniques:
*CRISPR-Cas9: This tool allows targeted manipulation of gene sequences, enabling precise modifications for improved protein production.
*Base editing: Techniques like cytosine base editors enable fine-tuning of protein function without introducing double-strand breaks.
*Synthetic promoters and regulatory elements: Designing artificial promoters and regulatory elements offers precise control over expression levels and timing.
These are just some examples, and the optimal approach depends on the specific protein and host organism. However, by employing these strategies, genome engineering can significantly enhance recombinant protein production, opening doors for new therapeutic breakthroughs and industrial applications.
14. What is a genome editing? Why is there a need to edit a genome? Explain the methodology of editing using CRISPR-Cas9.
Ans: Demystifying Genome Editing: A Powerful Tool with Purpose
What is it?
Genome editing refers to the deliberate manipulation of an organism's genetic makeup. It's like carefully rewriting the genetic code to introduce, remove, or change specific DNA sequences. Think of it as a precise editing tool for the instructions that build and run life.
Why edit?
The motivations for editing genomes are diverse and span various fields:
*Curing genetic diseases: By correcting harmful mutations responsible for genetic disorders, genome editing holds the potential to cure previously untreatable conditions.
*Enhancing traits: In agriculture, editing crops for increased resistance to pests and diseases or improved nutritional value could boost food security.
*Understanding gene function: Editing and observing the resulting changes helps scientists decipher how genes influence biological processes and development.
*Developing new biomaterials: Engineering microbes to produce valuable compounds like medicines or biofuels offers a sustainable approach to production.
CRISPR-Cas9: A Revolutionary Tool
CRISPR-Cas9 is a game-changer in genome editing. It's a naturally occurring bacterial system adapted for precise and efficient manipulation of DNA. Here's a simplified breakdown of how it works:
1. Guide RNA design: This molecule acts like a GPS, targeting the specific DNA sequence you want to edit. Researchers design the RNA to match the desired editing site.
2. Cas9 binding: The Cas9 protein, equipped with molecular scissors, binds to the DNA guided by the RNA.
3. A cleavage: Cas9 makes precise cuts at the target site, creating a double-strand break in the DNA.
4. DNA repair: The cell's natural repair mechanisms kick in. Depending on the desired outcome, different repair pathways can be exploited:
*Non-homologous end joining (NHEJ): This can lead to insertions or deletions at the break site, potentially disrupting or inactivating the targeted gene.
*Homologous recombination: If a donor DNA template is provided, the cell can use it to repair the break, incorporating the desired changes (insertions, deletions, or replacements).
Beyond CRISPR-Cas9
While CRISPR-Cas9 is currently the most popular tool, ongoing research explores other genome editing options with improved precision, efficiency, and targeting capabilities. The future of genome editing appears bright, promising advancements that could further revolutionize various fields.
Important Considerations:
Genome editing is a powerful technology, but it also raises ethical concerns and potential risks. Unforeseen consequences, equitable access, and potential misuse necessitate careful consideration and responsible development. Open dialogue and clear guidelines are crucial as we navigate the possibilities of this transformative technology.
15. What are the structural, functional and comparative genomics?
Ans: Here's a breakdown of the three fields:
Structural genomics:
*Deals with the physical structure and organization of genomes.
*Focuses on techniques like sequencing, mapping, and assembly to understand the order and arrangement of genes, chromosomes, and other features.
*Aims to create complete and accurate maps of genomes, revealing features like repeats, regulatory elements, and non-coding DNA.
Functional genomics:
*Investigates the function of genes and how they influence an organism's traits and physiology.
*Utilizes techniques like gene expression analysis, protein-protein interaction studies, and metabolic profiling to understand how genes are turned on and off, how proteins interact, and how these processes affect various biological functions.
*Aims to elucidate the complex relationships between genes, their products, and phenotypes.
Comparative genomics:
*Compares the genomes of different species to understand evolutionary relationships, identify conserved and divergent regions, and uncover the genetic basis of phenotypic differences.
*Analyzes similarities and differences in gene content, sequence, and arrangement to infer evolutionary history, gene function, and adaptation.
*Helps identify functional elements, disease-causing mutations, and potential targets for therapy.
Think of it this way:
*Structural genomics is like reading the instruction manual for building an organism.
*Functional genomics is like figuring out how each part of the machine works and interacts.
*Comparative genomics is like comparing different versions of the instruction manual to understand how different models evolved and function.
These three fields are interrelated and often work together to provide a comprehensive understanding of genomes. Studying structure, function, and comparing across species sheds light on the complexity and diversity of life.
16. What are the applications of protein engineering? Discuss in brief.
Ans: Protein engineering, the deliberate manipulation of protein structure and function, revolutionizes various fields with its diverse applications. Here's a glimpse into its potential:
Medicine:
*Developing new drugs: Engineered proteins can act as therapeutic agents, like enzymes for enzyme replacement therapy or antibodies for targeted cancer treatment.
*Gene therapy: Engineered viruses carrying therapeutic genes can deliver gene modifications for treating genetic diseases.
*Vaccines: Engineering viral proteins or designing entirely new protein scaffolds can lead to safer and more effective vaccines.
Biotechnology and Industry:
*Biocatalysis: Enzymes can be engineered for improved activity, specificity, and stability, enhancing industrial processes like biofuel production or biodegradation of pollutants.
*Biosensors: Engineered proteins can detect specific molecules like pollutants, pathogens, or biomarkers, making highly sensitive biosensors for healthcare and environmental monitoring.
*Biomaterials: Tailored proteins can be used for tissue engineering, drug delivery, or development of new biocompatible materials.
Agriculture:
*Pesticideresistant crops: Engineering crops to express proteins that deter pests or resist herbicides can improve yield and reduce pesticide use.
*Enhanced nutritional value: Engineering crops to produce higher levels of vitamins, minerals, or other essential nutrients can address malnutrition.
*Stress-tolerant crops: Engineering crops to withstand drought, heat, or salinity can improve food security in changing climates.
Basic Research:
*Understanding protein function: Studying the effects of modifications helps scientists understand how proteins work and interact on a molecular level.
*Developing new tools: Engineered proteins can be used as tools for studying other proteins, like fluorescent tags or molecular glue for protein interaction studies.
*Model systems: Engineering proteins with specific properties can be used to develop model systems for studying biological processes or diseases.
These are just a few examples, and the possibilities for protein engineering are constantly expanding. Importantly, ethical considerations and potential risks like unintended consequences need careful evaluation as this powerful technology advances.
17. If you are given a recombinant protein with 6-His-tags, how are you going to use it? Explain the methodology and application in detail.
Ans: Recombinant proteins with 6-His tags (usually His6-tag) offer a powerful tool for research and various applications due to their easy purification and detection. Here's how I would utilize such a protein, depending on the context:
Purification:
1. Immobilized metal affinity chromatography (IMAC): This is the most common technique for His-tagged protein purification. A column containing nickel (Ni2+) or cobalt (Co2+) ions bound to a chelating resin is used. The His-tag binds strongly to the metal ions, while other proteins in the mixture flow through. Washing the column removes loosely bound impurities. Finally, eluting with imidazole, which competes with the His-tag for metal binding, releases the purified protein. This method offers high specificity and purity.
2. Antibody-based purification: If the recombinant protein has a specific epitope recognized by an antibody, immunoprecipitation can be used. Antibodies coupled to Sepharose beads are incubated with the protein mixture. The His-tagged protein binds to the antibodies, while other proteins remain in solution. Washing removes unbound proteins, and the His-tagged protein is eluted with a low pH buffer.
Detection:
1. Western blotting: This technique separates proteins by size using gel electrophoresis. After transferring the proteins to a membrane, a His-specific antibody is used to detect the His-tagged protein. This allows visualization and quantification of the protein in complex samples.
2. Enzyme-linked immunosorbent assay (ELISA): If the His-tagged protein has enzymatic activity, it can be directly used in an ELISA. The protein binds to a capture antibody on a plate, then a secondary antibody conjugated to an enzyme is added. After adding a substrate for the enzyme, a colorimetric or fluorescent signal is generated, indicating the presence and amount of the His-tagged protein.
Applications:
The specific application of the His-tagged protein depends on its function and research goals. Here are some examples:
*Enzyme assays: Purified His-tagged enzymes can be used in biochemical assays to study their activity, substrate specificity, and inhibitors.
*Protein-protein interaction studies: His-tagged proteins can be used in pull-down assays to identify interacting proteins, helping understand cellular processes.
*Structural biology: Purified His-tagged proteins can be used for crystallization and X-ray crystallography to determine their three-dimensional structure.
*Therapeutic development: His-tagged proteins can be used as potential drug targets or scaffolds for designing new drugs or vaccines.
Remember, the specific methodology and application will depend on the properties of the protein, the available resources, and the research question you're trying to answer. However, utilizing the His-tag provides a versatile and efficient way to purify, detect, and study your recombinant protein, opening doors for various research and development avenues.
18. How do you apply protein engineering to track cellular localisation of proteins?
Ans: Protein engineering offers powerful tools to track and analyze the cellular localization of proteins, a crucial aspect of understanding their function and role in biological processes. Here are some ways to achieve this:
1. Fluorescent Protein Tags:
*Fusion: Engineering the protein to fuse with a fluorescent protein like GFP, mCherry, or YFP allows direct visualization of its location within living cells using fluorescence microscopy. Different colors enable multiplexing to study co-localization of multiple proteins.
*Split-fluorescent protein: This technique utilizes two non-fluorescent fragments of a fluorescent protein that only reconstitute and emit light when brought together by the interaction of the fused protein with its binding partner in a specific cellular compartment.
2. Enzyme-linked Tags:
*Reporter enzymes: Fusing the protein with enzymes like horseradish peroxidase (HRP) or beta-galactosidase (β-gal) allows for localization through visualization of enzymatic activity products. Specific substrates are added to the cells, and their conversion by the enzyme-tagged protein reveals its location.
3. Affinity Tags:
*Immunolocalization: Antibodies specific to the engineered tag (e.g., His-tag, FLAG-tag) can be used to detect the protein's location. Antibodies labelled with fluorescent dyes or enzymes enable visualization through microscopy or other detection methods.
*Proximity labeling: Tags like biotin or SNAP-tag can be introduced along with a biotin ligase or SNAP enzyme specifically expressed in a target cellular compartment. Labeling with biotin or SNAP-tag substrates followed by streptavidin or SNAP-fluorophore conjugates reveals the protein's localization within that compartment.
4. Genetic Techniques:
*CRISPR-Cas9 mediated tagging: Precise insertion of fluorescent protein or other tag-coding sequences directly into the chromosomal DNA flanking the target protein gene allows for endogenous tagging and live-cell observation without affecting protein function.
Considerations and Challenges:
*Tag size and functionality: Choosing the right tag is crucial to minimize interference with protein function and localization. Smaller tags are preferred, and validation ensures minimal impact.
*Antibody specificity: Off-target binding by antibodies can lead to false localization signals. Careful control experiments and validation with other methods are essential.
*Cellular toxicity: Some tags or enzymes can be toxic to cells at high concentrations or in specific cell types. Optimization and careful experimentation are important.
Combining these approaches with advanced microscopy techniques like super-resolution microscopy and live-cell imaging allows for detailed spatiotemporal analysis of protein localization, providing valuable insights into cellular dynamics and protein function. As protein engineering evolves, even more sophisticated tools and techniques will emerge, further revolutionizing our understanding of the intricate world of cellular processes.
19. How to generate a recombinant immunotoxin? Why do you think there is a need for generation of an immunotoxin? Mention its mechanism of action.
Ans: Generating a Recombinant Immunotoxin: Targeting Tumors with Precision
Recombinant immunotoxins (RITs) are powerful weapons in the war against cancer. They combine the targeting specificity of antibodies with the potent cytotoxicity of toxins, resulting in targeted cell death. Here's how you can generate and utilize these engineered assassins:
1. Antibody Production:
*Hybridoma Technology: Fuse B cells from immunized animals with immortal myeloma cells to create hybridoma cell lines secreting specific antibodies against tumor antigens.
*Phage Display Libraries: Screen vast libraries of engineered phages displaying antibody fragments to identify high-affinity binders for the desired tumor antigen.
2. Toxin Selection and Modification:
*Choose a Potent Toxin: Plant and bacterial toxins like ricin, Pseudomonas exotoxin, or diphtheria toxin provide potent cell-killing abilities.
*Modify Toxin for Safety and Specificity: Engineer mutations to remove non-essential domains, reduce non-specific toxicity, and facilitate conjugation with the antibody.
3. Fusion and Expression:
*Genetic Fusion: Link the modified toxin gene to the antibody gene using recombinant DNA technology.
*Expression Systems: Use bacterial, yeast, or mammalian cell lines to efficiently produce the recombinant immunotoxin.
4. Purification and Quality Control:
*Purification Protocols: Employ chromatography and filtration techniques to isolate the RIT protein with high purity.
*Quality Control Assays: Conduct tests to ensure proper folding, activity, and specificity of the RIT before therapeutic use.
Why We Need RITs:
*Targeted Therapy: RITs attack specific tumor cells expressing the target antigen, minimizing harm to healthy tissues unlike conventional chemotherapy.
*Overcoming Resistance: Tumors resistant to traditional drugs can be susceptible to RITs due to their specific targeting mechanism.
*Potent Cytotoxicity: Toxins kill targeted cells by various mechanisms like disrupting protein synthesis or inhibiting DNA replication, leading to tumor regression.
Mechanism of Action:
1. Target Binding: The antibody portion of the RIT binds to the specific antigen on the surface of tumor cells.
2. Internalization: The RIT is internalized into the tumor cell via receptor-mediated endocytosis.
3. Toxin Activation: Within the cell, the toxin domain is cleaved and activated, disrupting essential cellular processes.
4. Cell Death: The activated toxin inhibits protein synthesis, disrupts DNA replication, or triggers apoptosis, leading to targeted tumor cell death.
Challenges and Future:
*Off-target effects and toxicity: Optimizing targeting and reducing non-specific binding remain crucial challenges.
*Delivery and penetration: Delivering RITs effectively to deep tumor tissues needs further development.
*Clinical trials and optimization: Extensive testing and refining RITs for specific cancers are crucial for effective cancer therapy.
RITs represent a promising strategy for targeted cancer therapy with their unique combination of specificity and potency. Continued research and development hold the potential to overcome current challenges and unleash the full power of these engineered assassins in the fight against cancer.
20. Assertion: RFLP is variation in length of DNA fragments when cleaved by same restriction endonuclease. Reason: Genome of every individual has different position of restriction sites.
(a) Both assertion and reason are true and the reason is the correct explanation of the assertion.
(b) Both assertion and reason are true but the reason is not the correct explanation of the assertion.
(c) Assertion is true but reason is false.
(d) Both assertion and reason are false.
Ans: (a) Both assertion and reason are true and the reason is the correct explanation of the assertion.
21. Assertion: Recombinant immunotoxins are rationally engineered protein agents. Reason: It is prepared by fusing DNA-coding region of antibody with the DNA code of toxin.
(a) Both assertion and reason are true and the reason is the correct explanation of the assertion.
(b) Both assertion and reason are true but the reason is not the correct explanation of the assertion.
(c) Assertion is true but reason is false.
(d) Both assertion and reason are false.
Ans: (a) Both assertion and reason are true and the reason is the correct explanation of the assertion.
Questions And Answer Type By: Himashree Bora.
Post ID -- DABP007087
